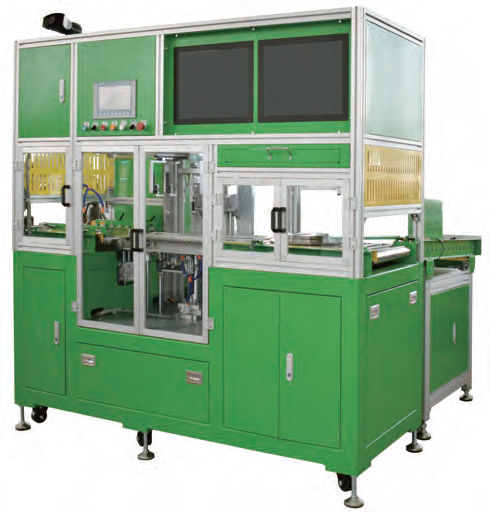

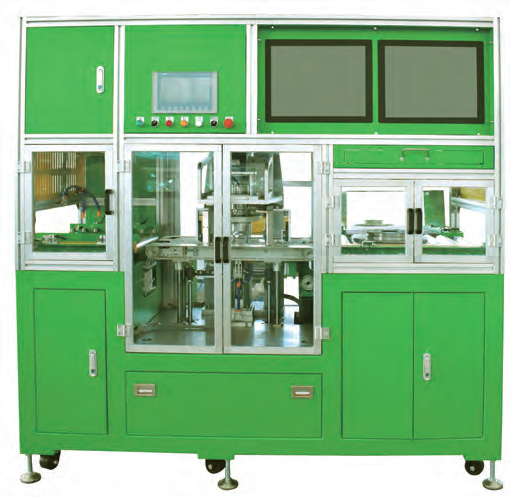

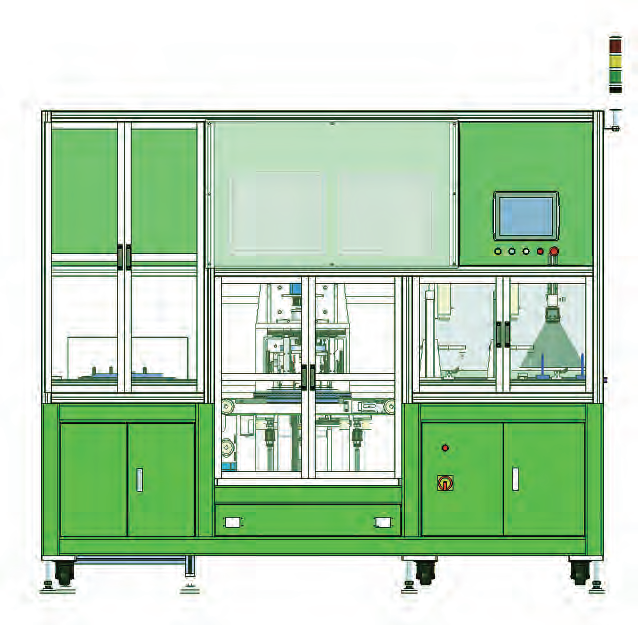

Advanced Automatic Brake Disc Detector

Features

Carrying with statistics of touching screen ,the statistical data can be downloaded,the quality of products can be traced
Equipped with probe alarm ,probe fault can alarm
Industry level detecting host and recorder ,and equipped with industrial air conditioning,so it can work lastly and reliably
The host with foot pad,is more suitable for the damp climate of the south,the maintainers don’t have to bend down

Product Description

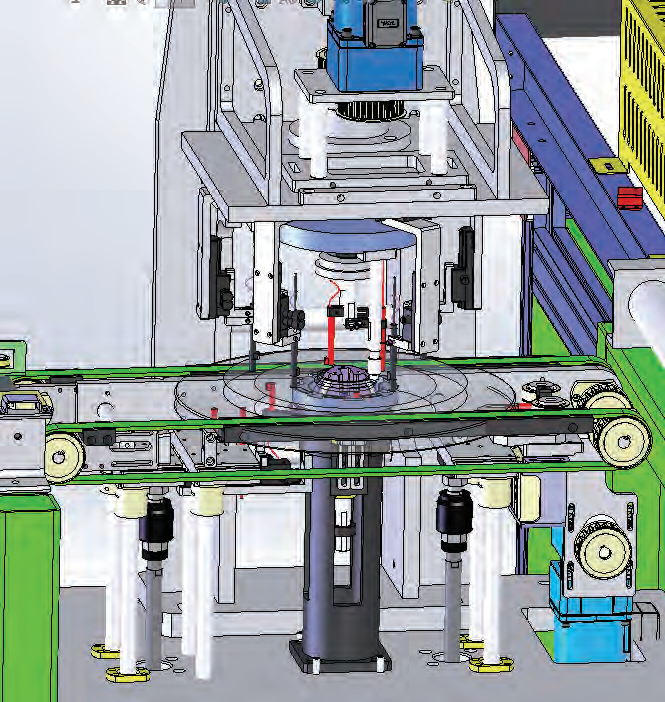

SWT-608 type full automatic brake disc detector,equipped with the maturest eddy current detector ,combined with PLCtechnology,analog electronics technique and sensor technique so as to realize flaw full automatic detection on sand hole air hole and flaw of brake disc.

SWT-608 type full automatic brake disc detector assembly in brake disc manufacturing and detecting flow line,it can be fused with other equipment and be a part of brake disc manufacturing and detecting.

Seamless Production Line Integration & Online Inspection

Engineered for seamless integration into existing manufacturing lines, the system perfectly interfaces with production equipment to enable real-time online inspection during brake disc manufacturing, significantly boosting production efficiency while ensuring every brake disc meets stringent quality standards.

15+ Years of Technical Excellence, Market-Proven Performance

Deep Technical Expertise: Over 15 years of specialized inspection equipment R&D experience
Proven Reliability: Dozens of successfully delivered systems, all operating with exceptional stability
Zero-Failure Track Record: Outstanding performance at customer sites with minimal downtime
Comprehensive Support: Professional technical team providing full-spectrum after-sales service.

Core Advantages

Fully Automated Operation: One-touch startup with zero manual intervention required
High Detection Accuracy: Identifies even microscopic defects with precision
High-Speed Detection: Meets demanding high-throughput production requirements
Versatile Compatibility: Capable of inspecting various brake disc specifications
Complete Traceability: Comprehensive detection data recording and management system

Technical Parameters

Name	Portable Eddy Current Flaw Detector ERW
Range of frequency	64 Hz～2 MHz
Gain	0～48dB,stepping is 0.5dB
Phase position rotation	0~360° stepping is 1 °
Ratio of gains(Y/X)	0.1~10
	Inside and outside clock control synchronous alarm output
	High accuracy end socket and the tail signal removal of function
	High accuracy real time delay alarm output
	Non amplitude phase position/ amplitude alarm area
	Full digital computer parameter adjustment
	The floppy disk hard disk as well as detecting signal playback
	Quick figure/analog electronic balance
	Equipped with memory trace delayed blanking function
	Menu type man-machine dialogue
	Probe fault recognition chip is set inside
	Broadband digital filtering restrains influences of speed changes on signal amplitude
